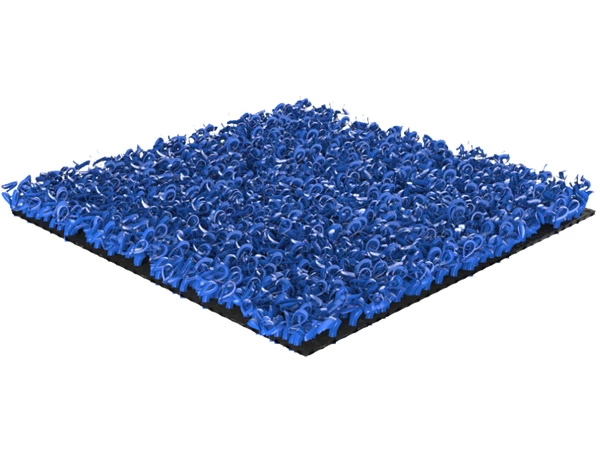

| Padel Field Size | 10X20M | Lawn Specification | Height: | 12mm | |
| Field accessories Specification | Columns and crossbars Material: | Q235 hot-dip galvanized steel structure | Density: | 52500density | |
| Dimensions: | ø100x50x3mm Four-corner load-bearing column adopts double column | Dtex: | 9000Dtex | ||
| Size: | ø100*50*3.0mm Column spacing is 2m | Backing: | PP+Net+Sbr latex | ||
| The frame adopts: | Q235 hot-dip galvanized steel pipe | Color: | Blue、Light Blue、Green | ||

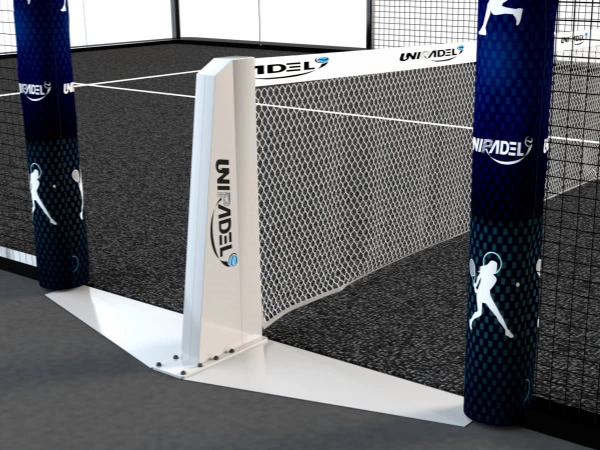

| Size: | ø60*40*2.0mm | Stadium net post+Net | Aluminum alloy mesh post: | 80*80*3.0mm | |
| Mesh diameter: | 4mm | Height: | 920mm (floor type) | ||
| mesh distance: | 50x50mm | With center net | |||

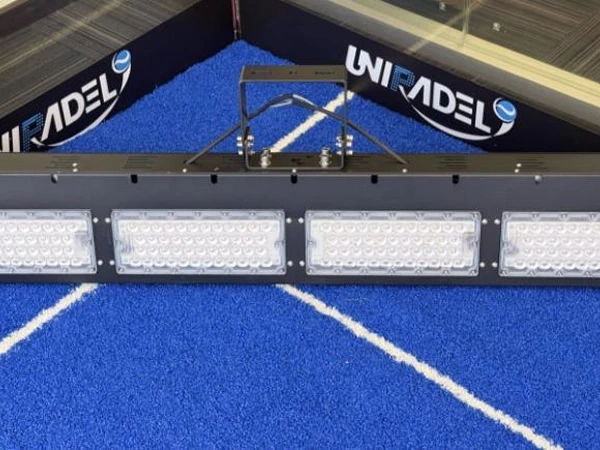

| The frame is connected with stainless steel bolts; | Lighting System | Working voltage: | 300W | ||
| The height of both ends (width) and length of the court is 4m | Service life: | 3Years | |||
| The height of the middle of the length of the court is 3m, and the door is in the middle of both sides; | 4 Set Light for 1 field(MEAN WELL power supply, Philips lamp beads) | ||||

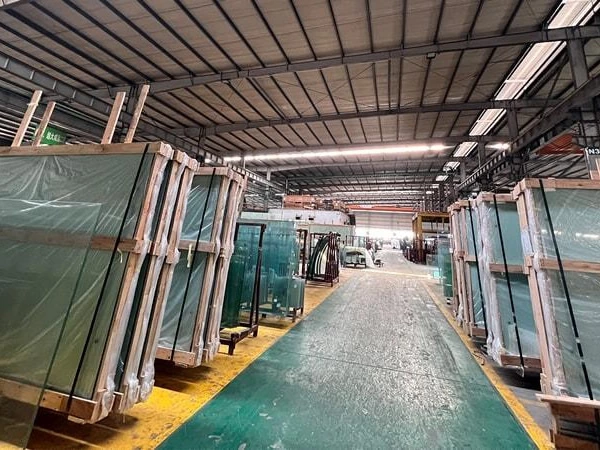

| Tempered glass | 12mm Thickness | Advantage | Hot-dip galvanized steel pipe, imported polyester powder spraying | ||
| Lamp posts Height: | 6m | No fading for 5 years, no paint falling for 10 years | |||
| Use stainless steel 304 bolts that will never rust | |||||
PADEL COURTS

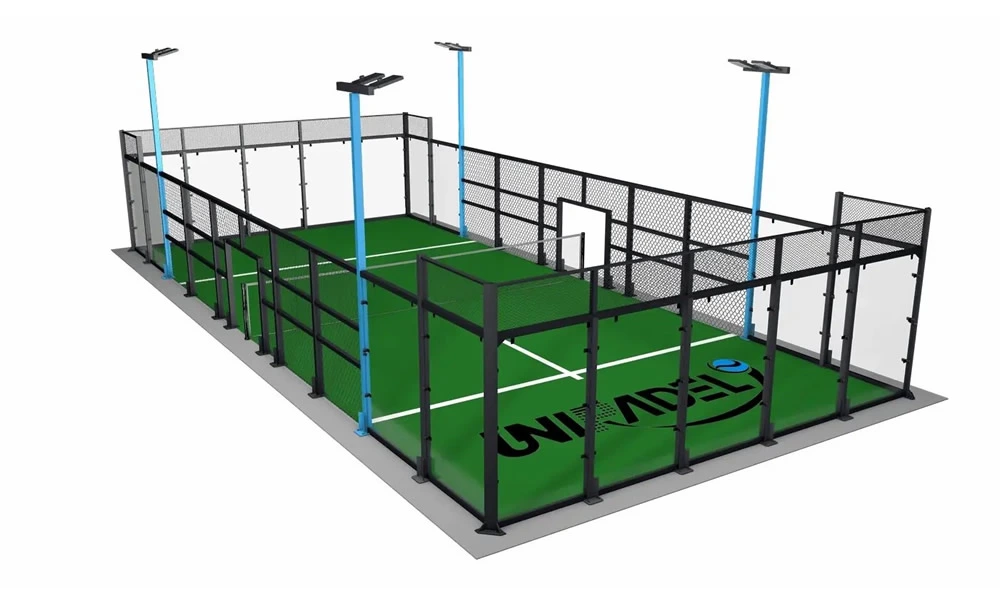

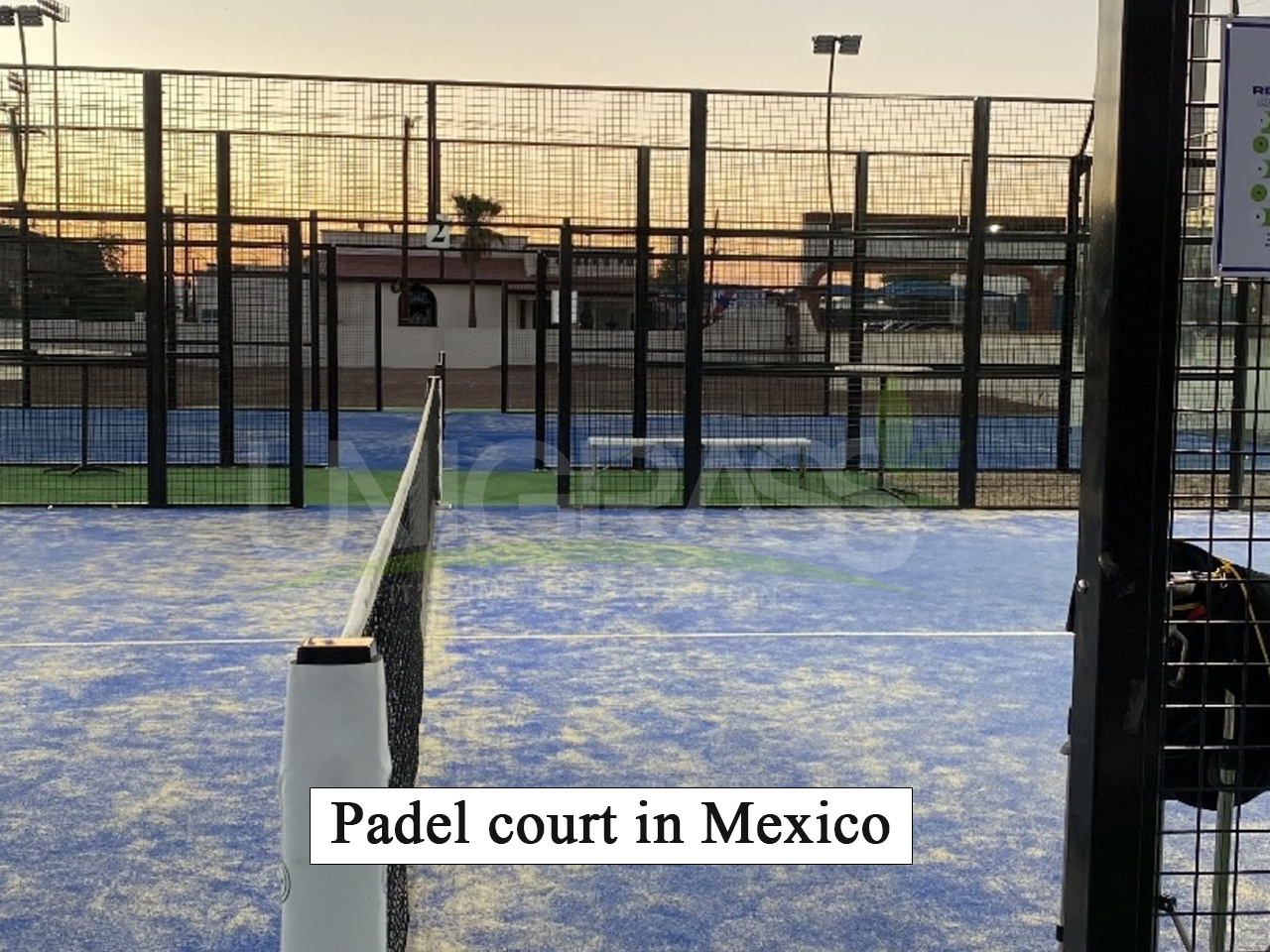

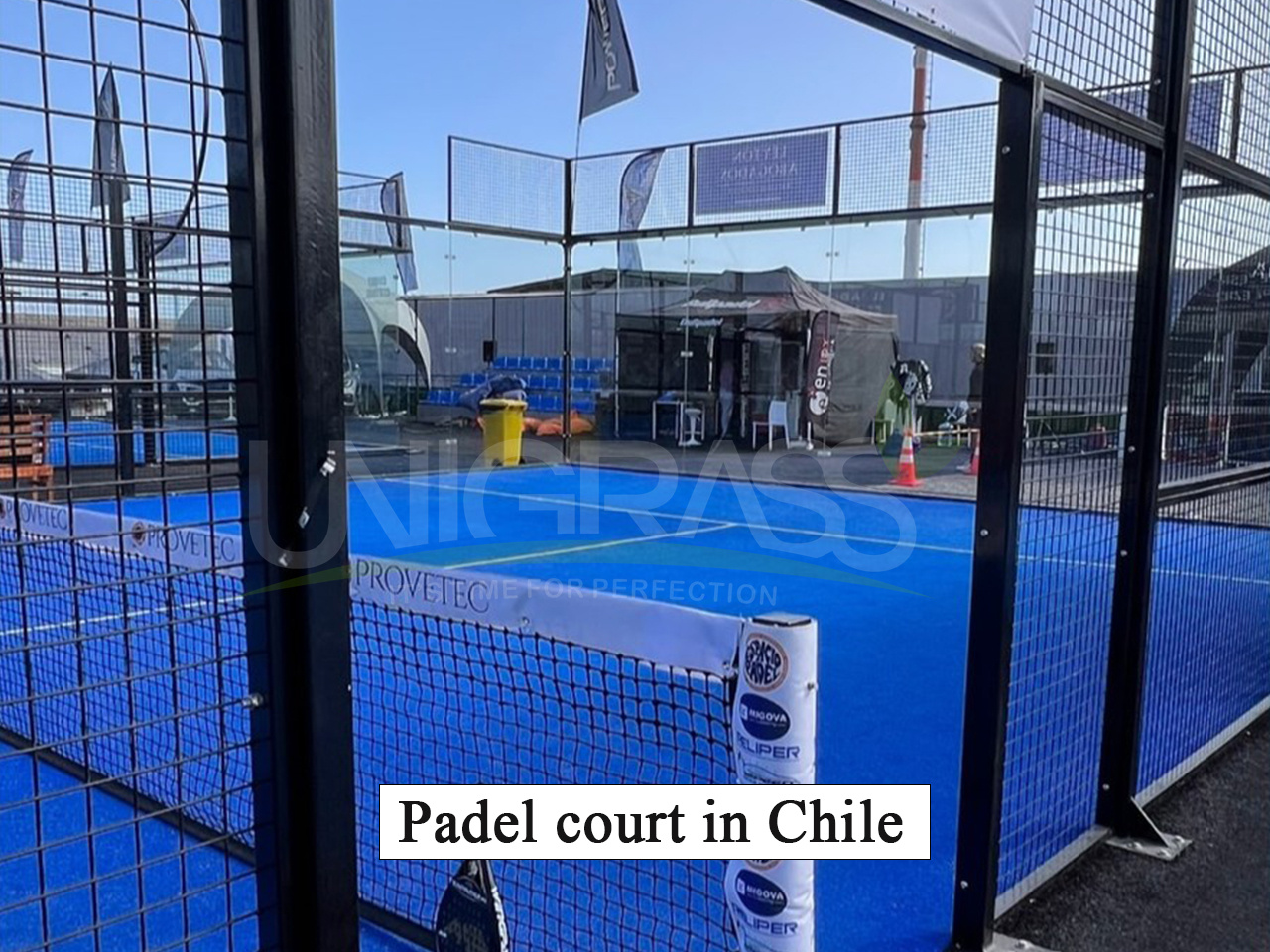

Panoramic Padel Court Competition Standard
Brand new padel court design
The panoramic padel court is an innovative design that aims to enhance the players' game experience and the spectators' viewing pleasure. Compared with the traditional padel court, the panoramic court has a transparent fence around the field, allowing the spectators to clearly watch the game from all angles, and the players can also enjoy a wider field of view during the game.

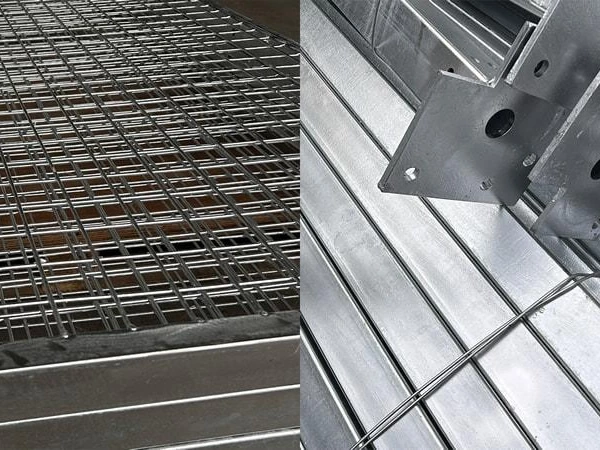

Made of hot-dip galvanized materials, customizable structure and color
This kind of court is usually built with hot-dip galvanized materials to ensure its durability and safety. Artificial grass is used to provide good elasticity and comfortable foot feel, reducing the risk of sports injuries. The court's columns and frames can be customized according to customer needs, with various colors, which can blend harmoniously with the surrounding environment.
Use for entertainment and competition
The panoramic padel court is not only suitable for professional competitions, but also very suitable for leisure and entertainment. Whether in clubs, schools or communities, it can become an ideal place for people to exercise, communicate and have fun. This design makes the padel sport more attractive and attracts more and more enthusiasts to participate.

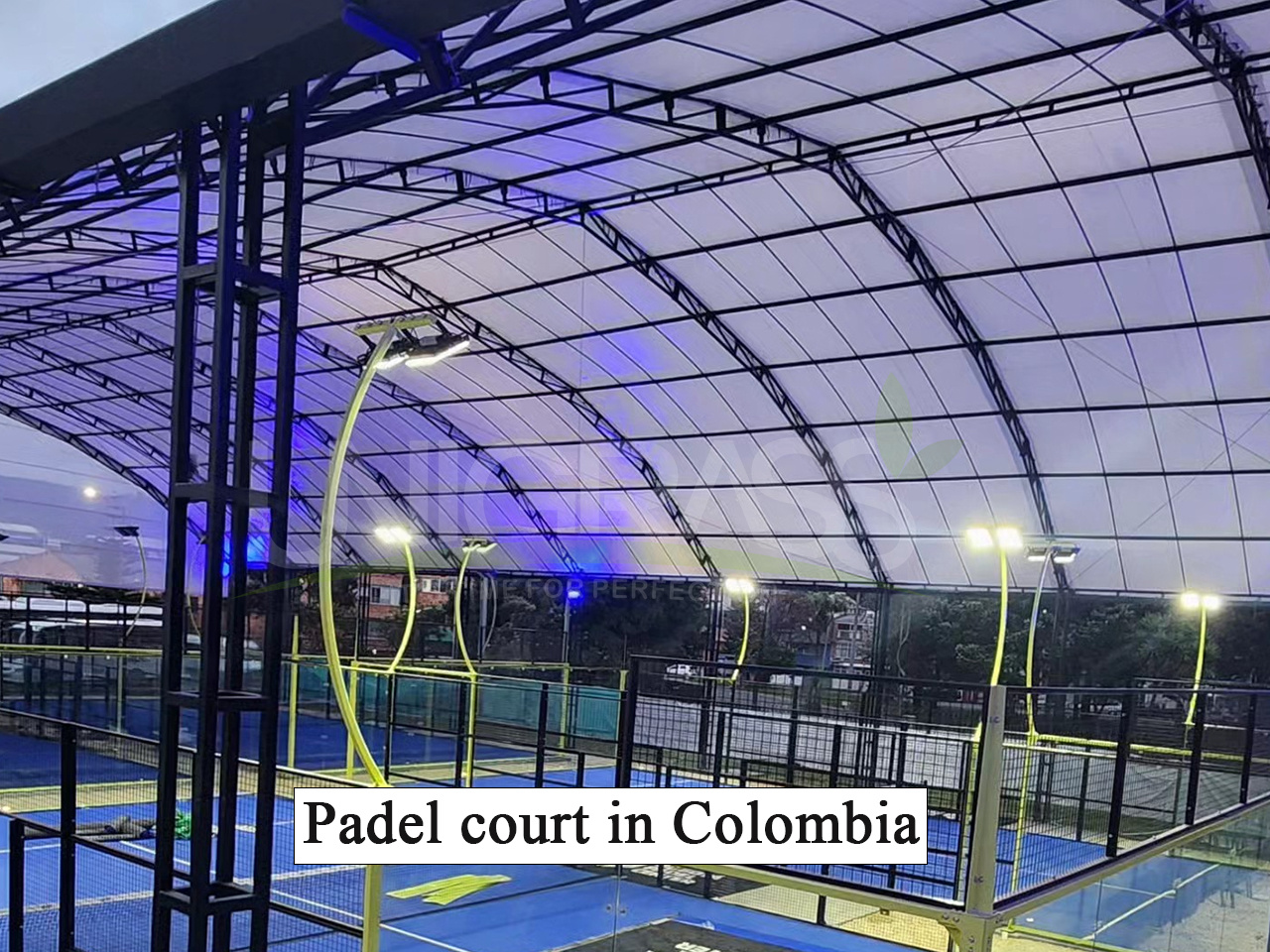

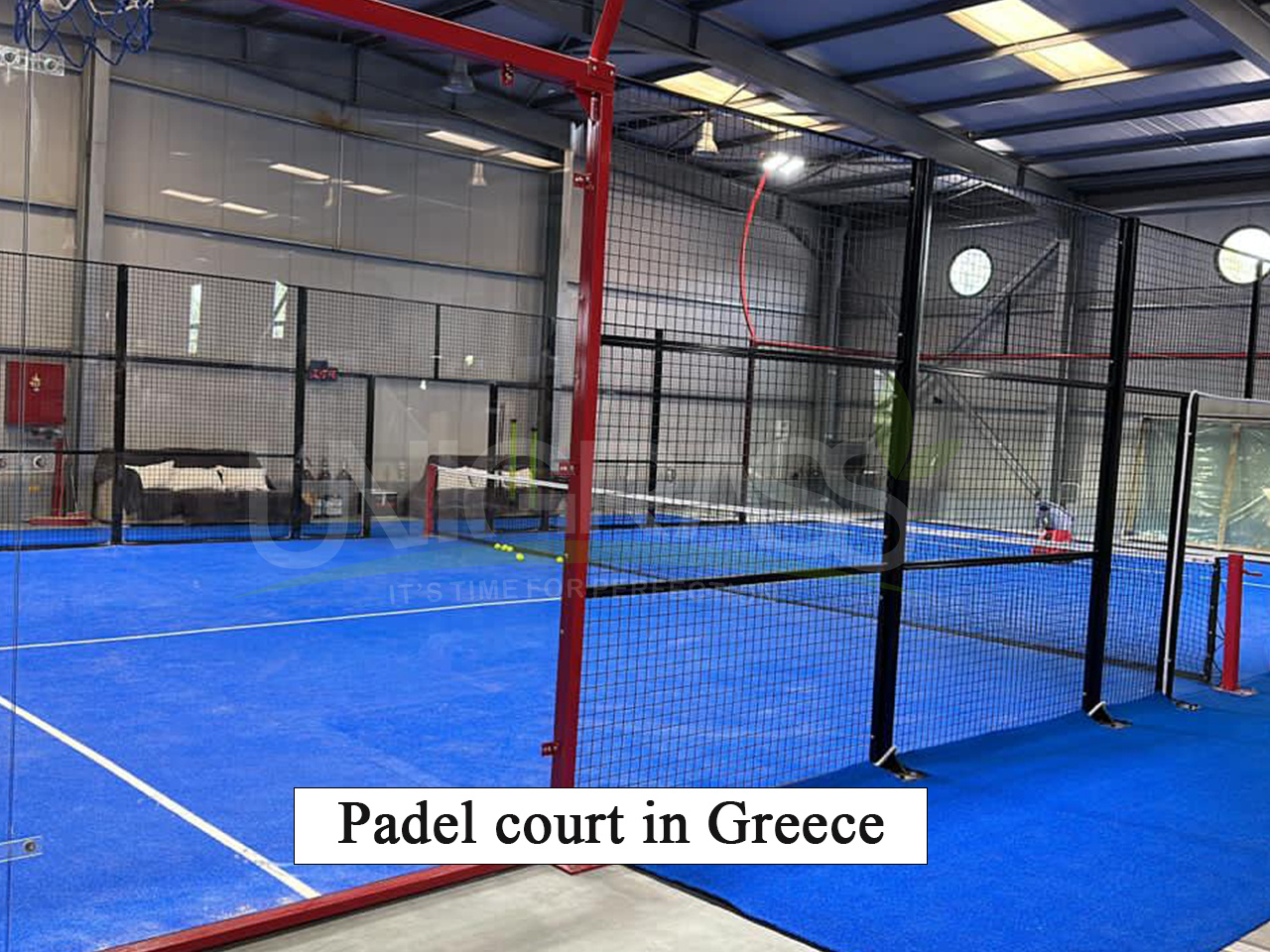

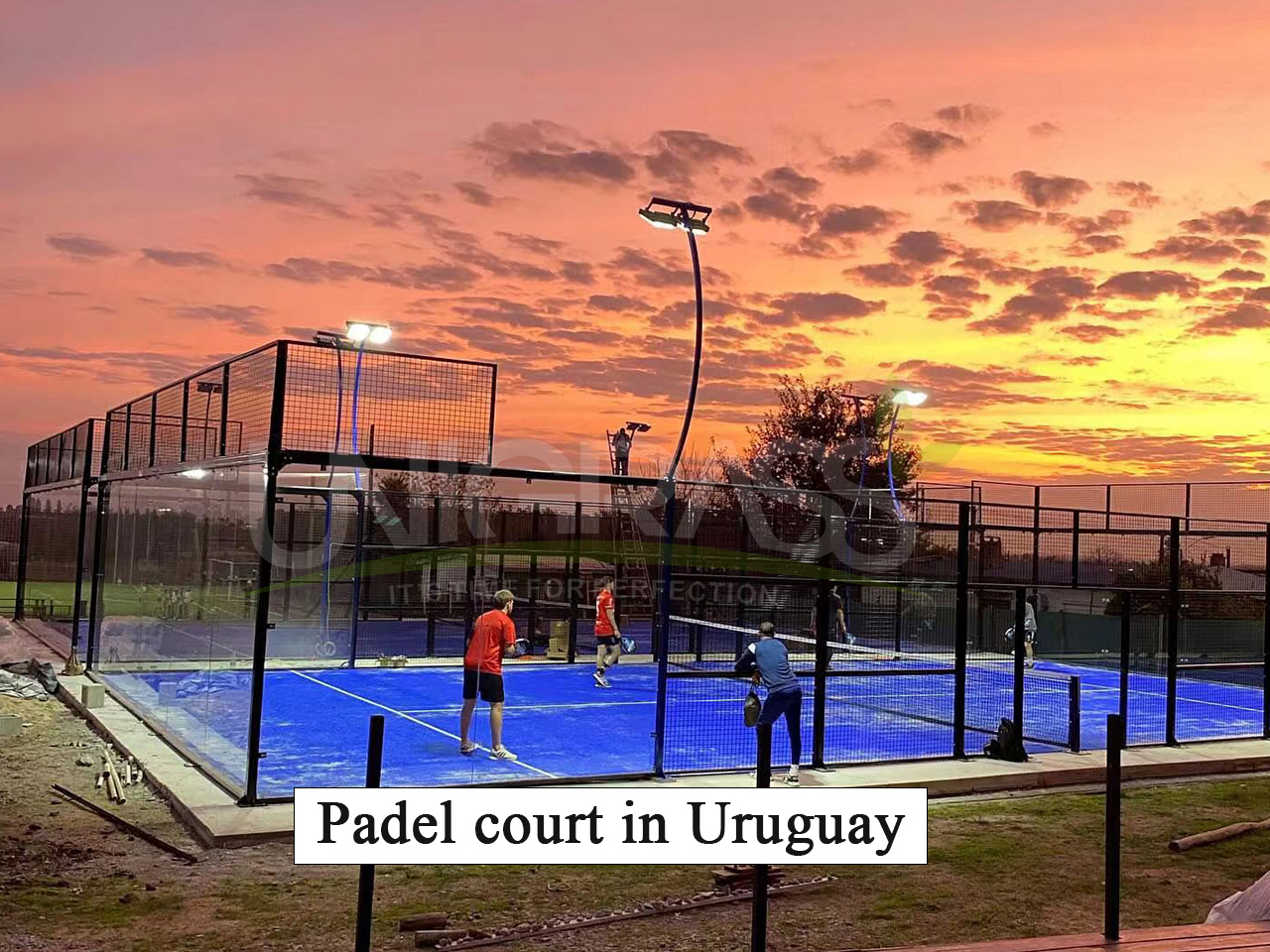

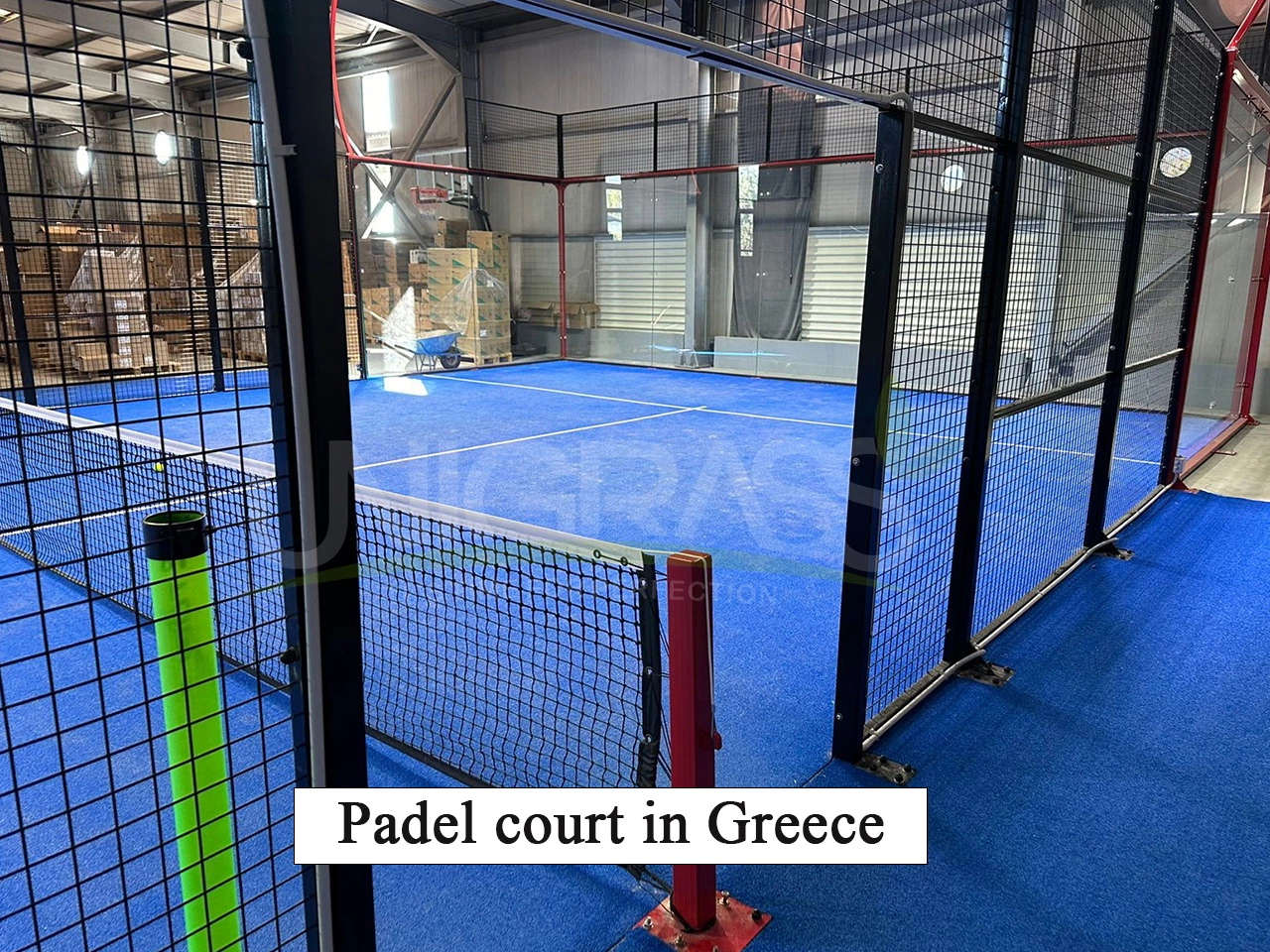

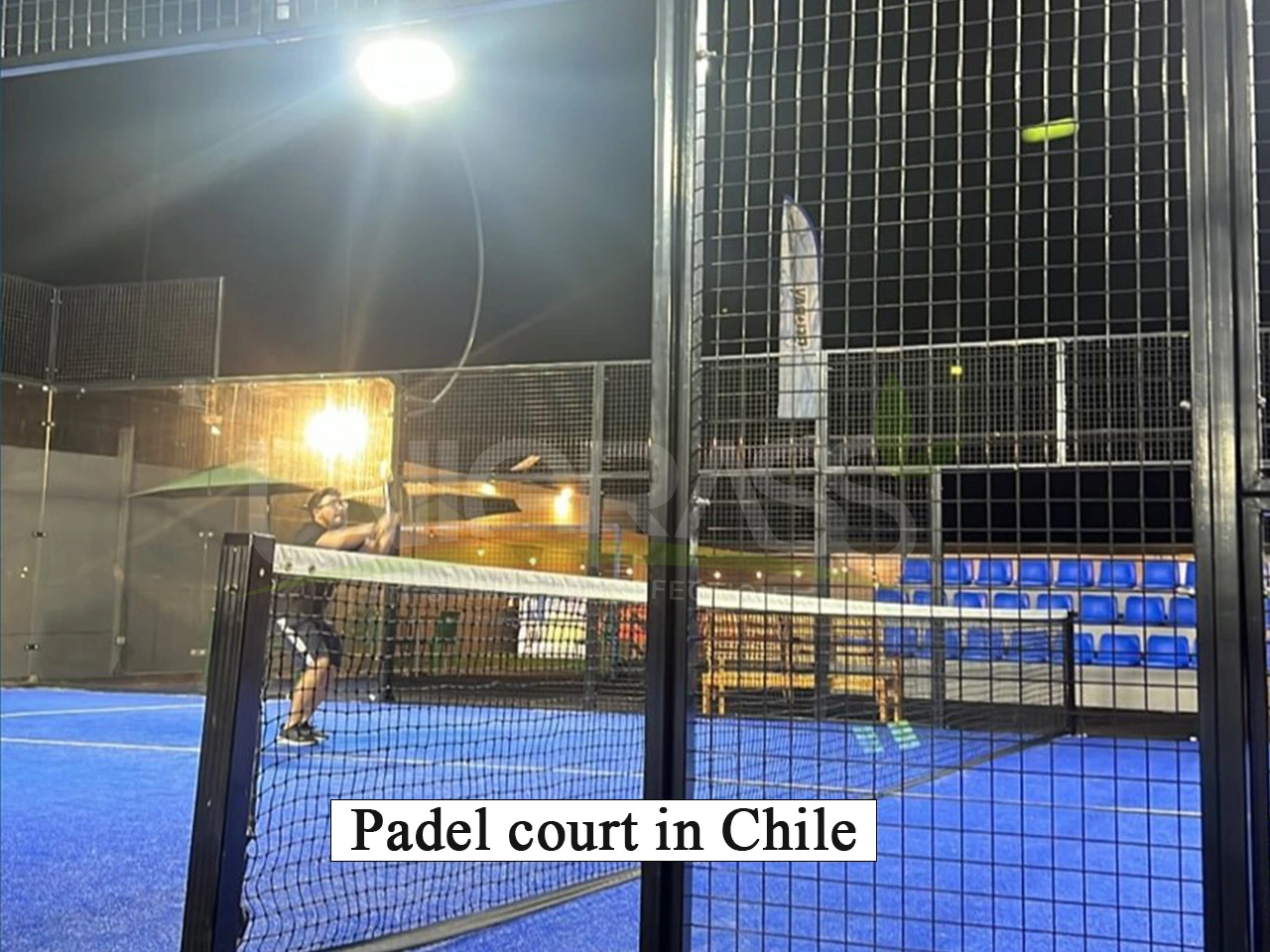

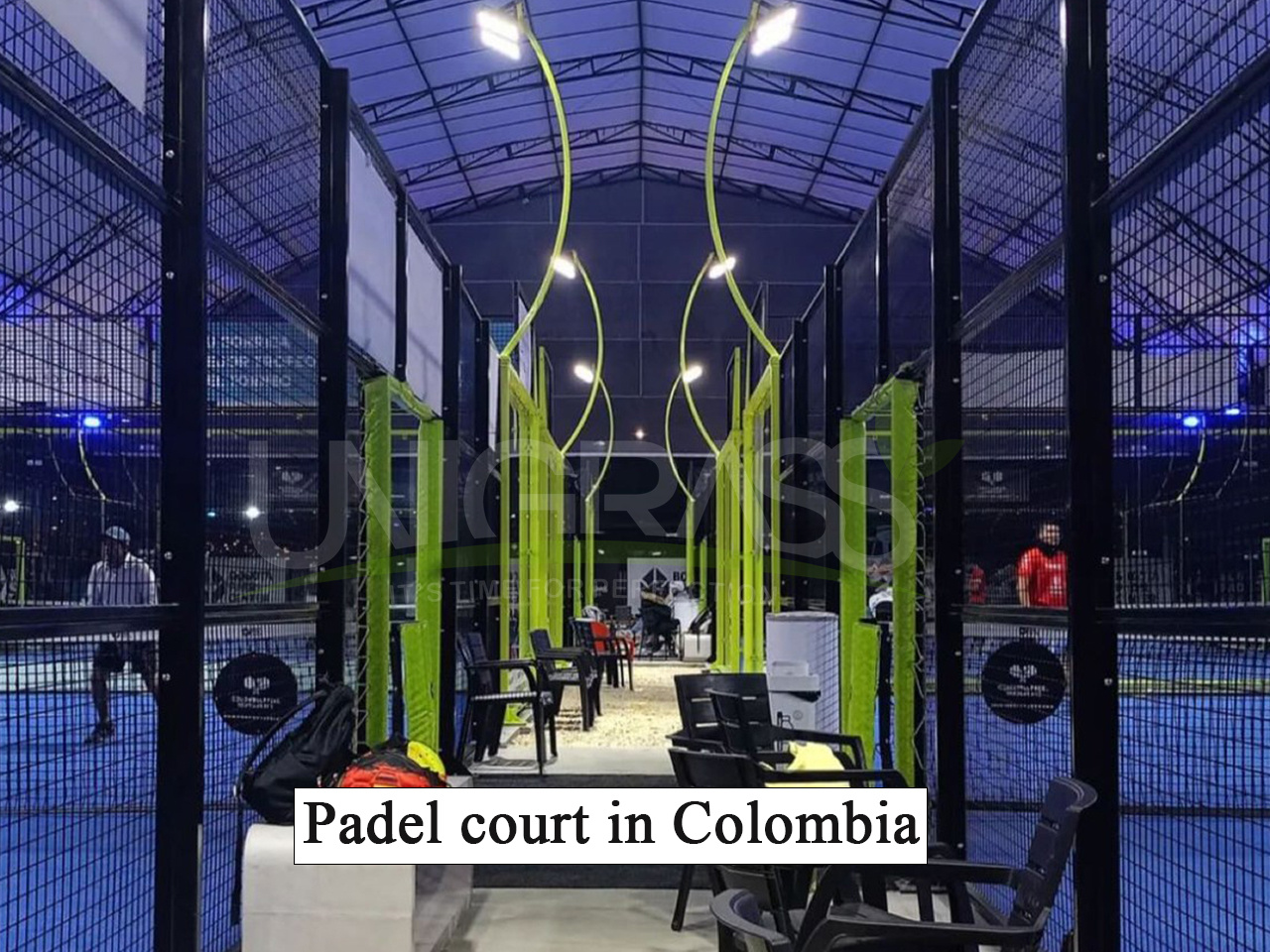

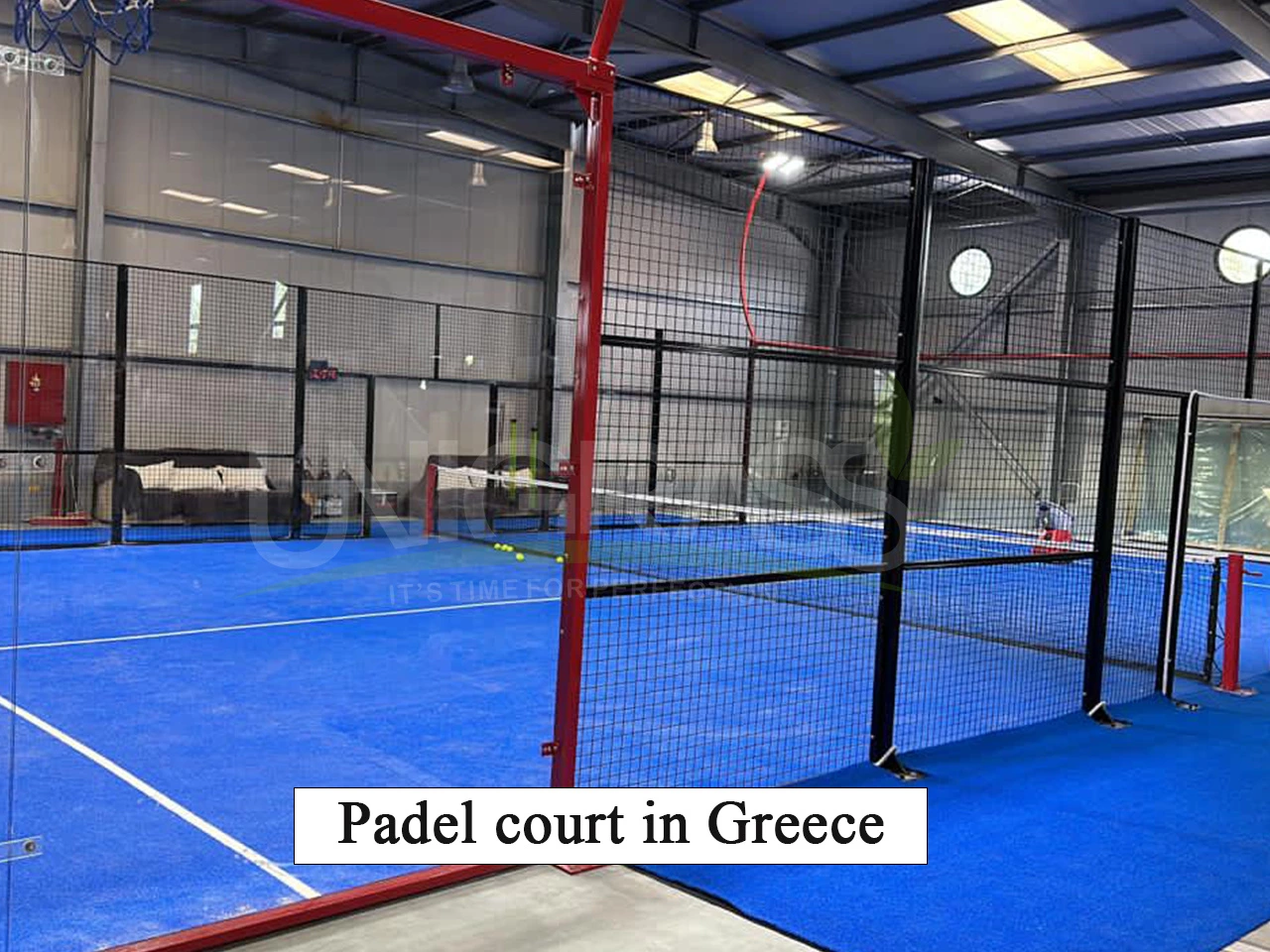

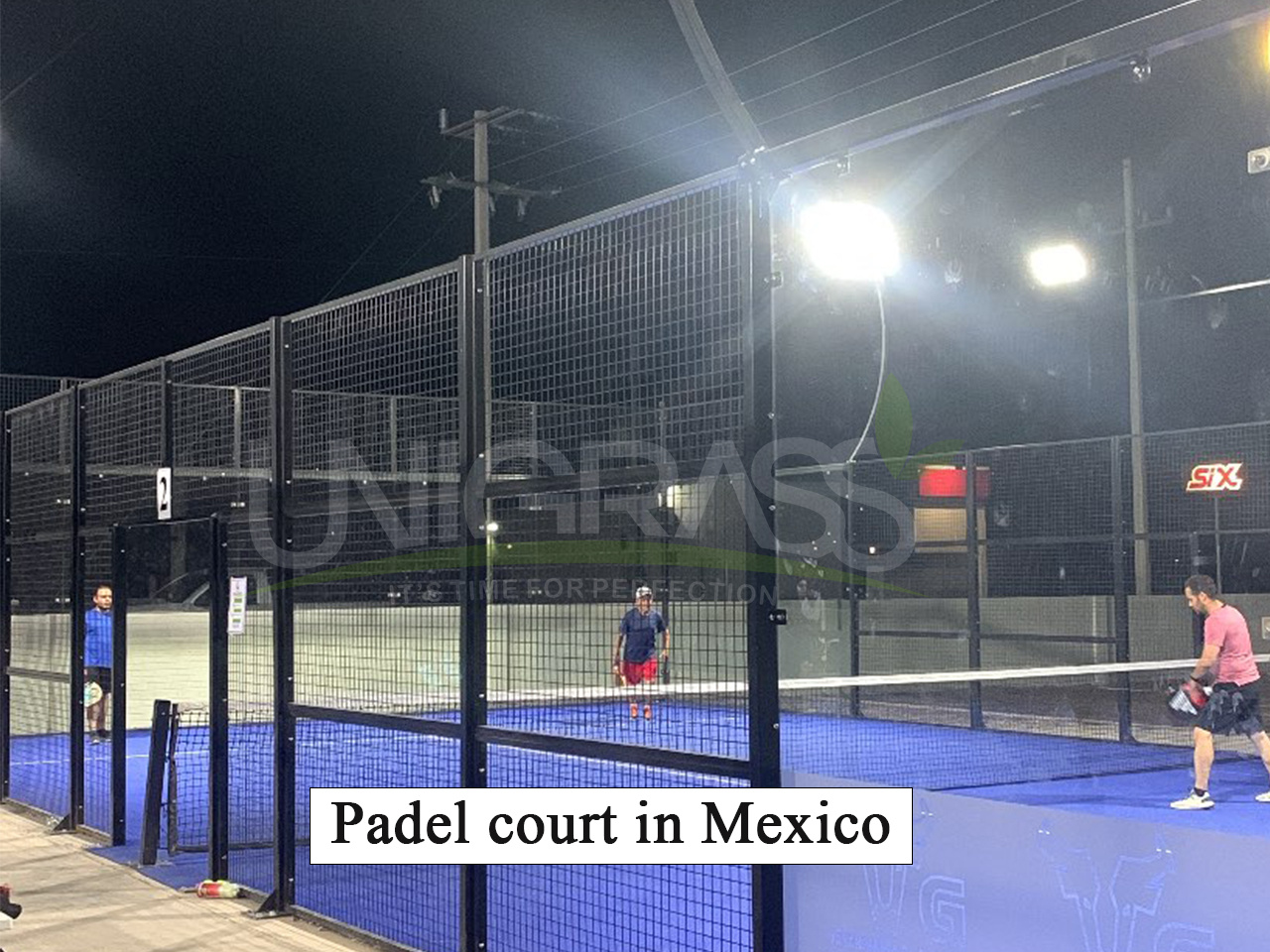

Projects we have done
PADEL COURTS

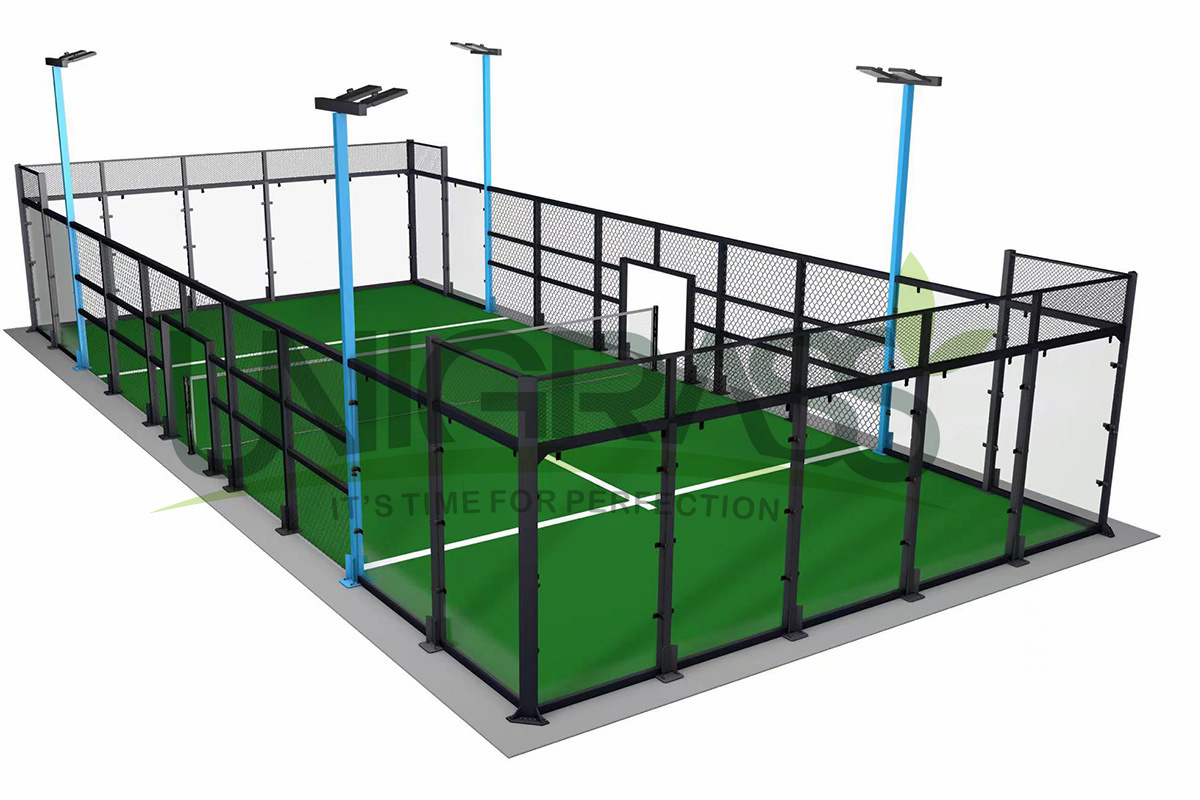

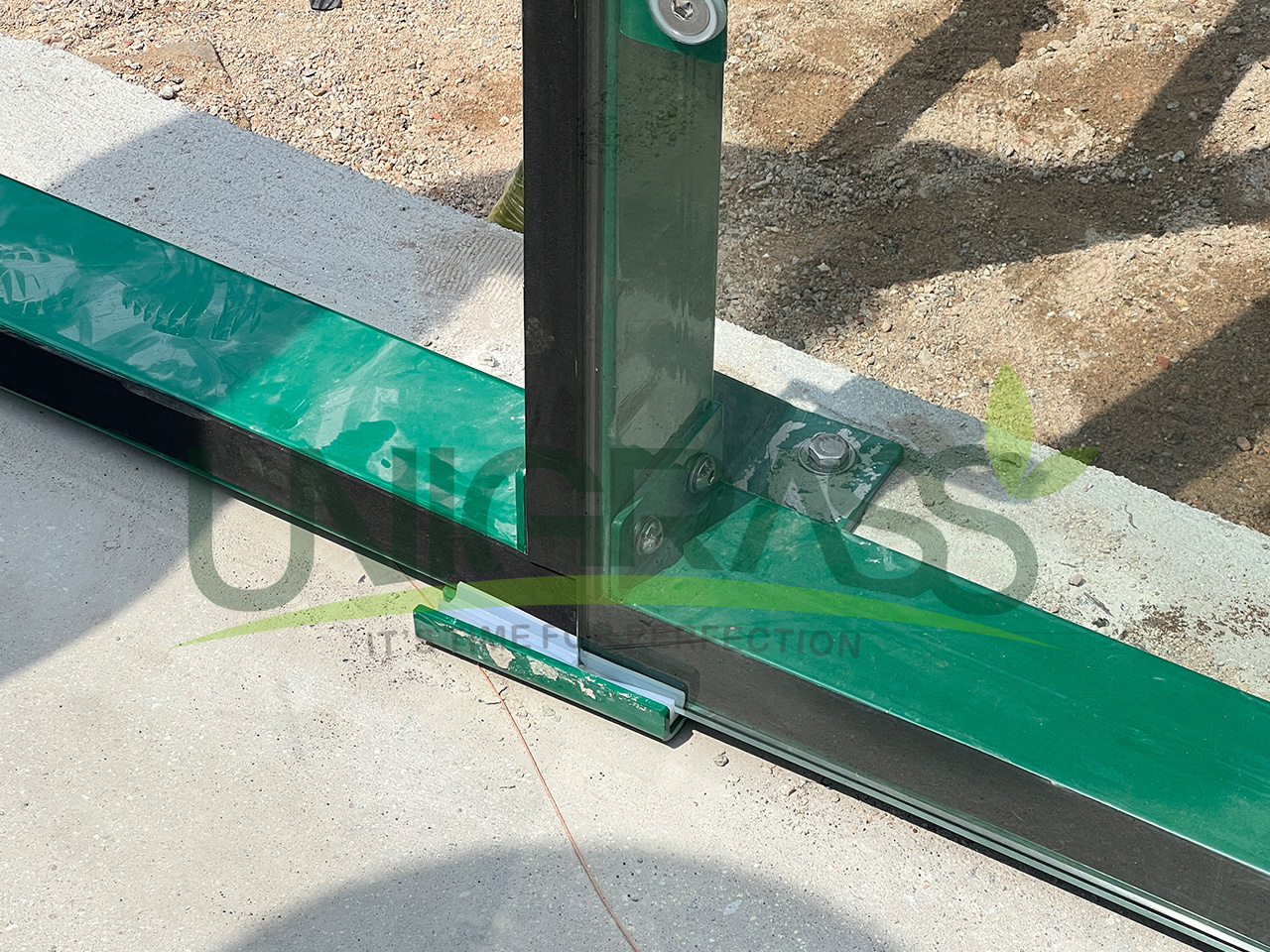

Classic Padel Court Competition Standard
Durable and stable venue design
The multi-column classic padel court is designed for durability and stability, suitable for various climates and usage intensity. The court adopts a multi-column support structure, which provides excellent strength and wind resistance, especially suitable for outdoor venues. The columns are usually made of high-quality steel and are specially treated with anti-corrosion to withstand bad weather such as strong winds, rain and high temperatures for a long time. This design not only ensures the durability of the court, but also enhances the overall aesthetics and professionalism.
The court is both functional and economical
The multi-column classic padel court follows international competition standards. The venue size is 10x20 meters, the net height is 0.88 meters, and the fence, glass enclosure and columns effectively protect the safety of the players. The court floor uses professional-grade non-slip artificial turf to ensure that players can maintain stable movements during intense competitions and provide excellent ball rebound performance. The classic court is both functional and economical, suitable for clubs and private venues, and is an ideal choice for padel sports enthusiasts and professional players.
| Padel Field Size | 10X20M | Lawn Specification | Height: | 12mm | |
| Field accessories Specification | Columns and crossbars Material: | Q235 hot-dip galvanized steel structure | Density: | 52500density | |
| Dimensions: | ø100x50x3mm Four-corner load-bearing column adopts double column | Dtex: | 9000Dtex | ||
| Size: | ø100*50*3.0mm Column spacing is 2m | Backing: | PP+Net+Sbr latex | ||
| The frame adopts: | Q235 hot-dip galvanized steel pipe | Color: | Blue、Green | ||
| Size: | ø60*40*2.0mm | Stadium net post+Net | Aluminum alloy mesh post: | 80*80*3.0mm | |
| Mesh diameter: | 4mm | Height: | 920mm (floor type) | ||
| mesh distance: | 50x50mm | With center net | |||
| The frame is connected with stainless steel bolts; | Lighting System | Working voltage: | 300W | ||
| The height of both ends (width) and length of the court is 4m | Service life: | 3Years | |||
| The height of the middle of the length of the court is 3m, and the door is in the middle of both sides; | 4 Set Light for 1 field(MEAN WELL power supply, Philips lamp beads) | ||||
| Tempered glass | 12mm Thickness | Advantage | Hot-dip galvanized steel pipe, imported polyester powder spraying | ||
| Lamp posts Height: | 6m | No fading for 5 years, no paint falling for 10 years | |||
| Use stainless steel 304 bolts that will never rust | |||||

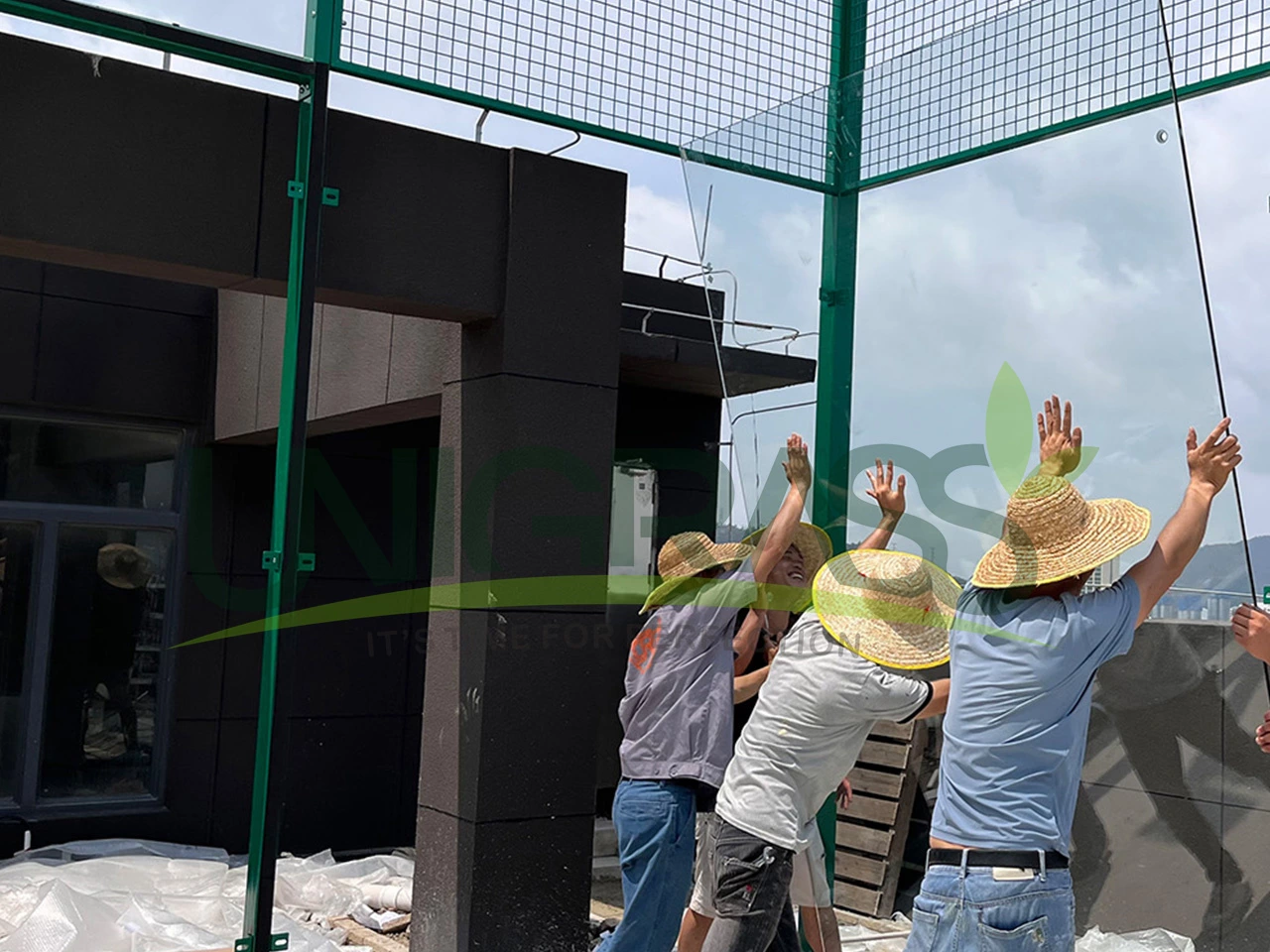

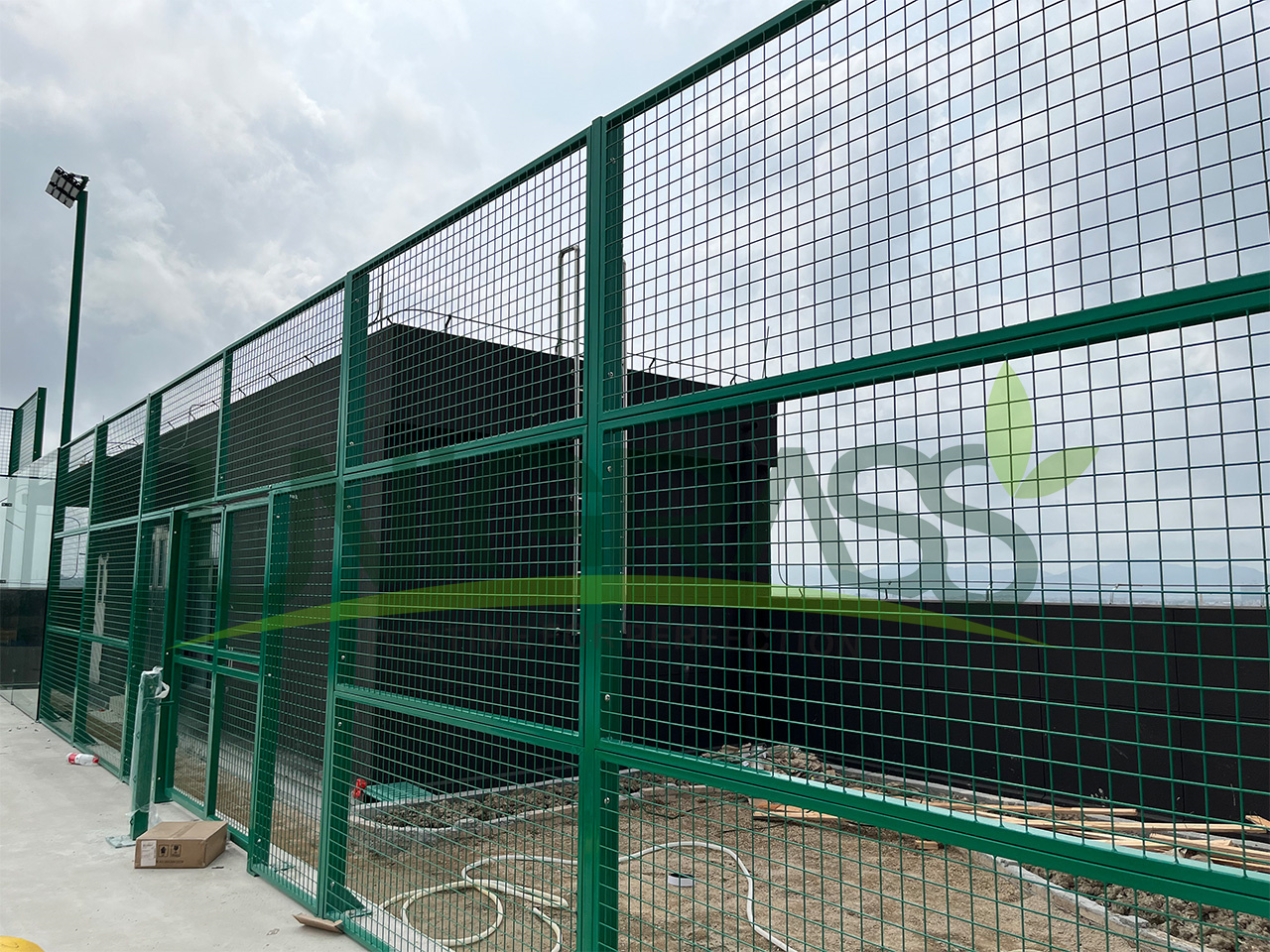

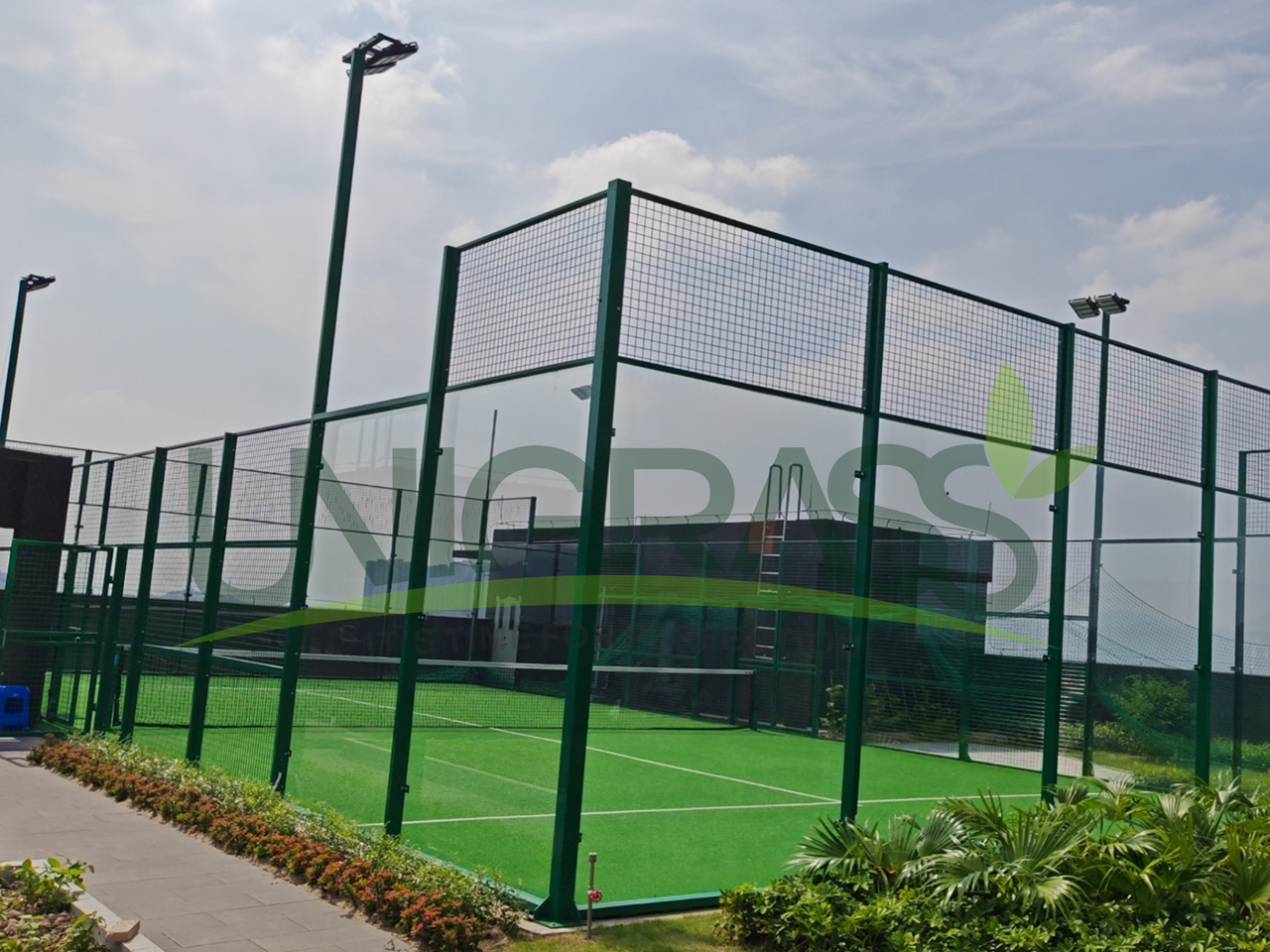

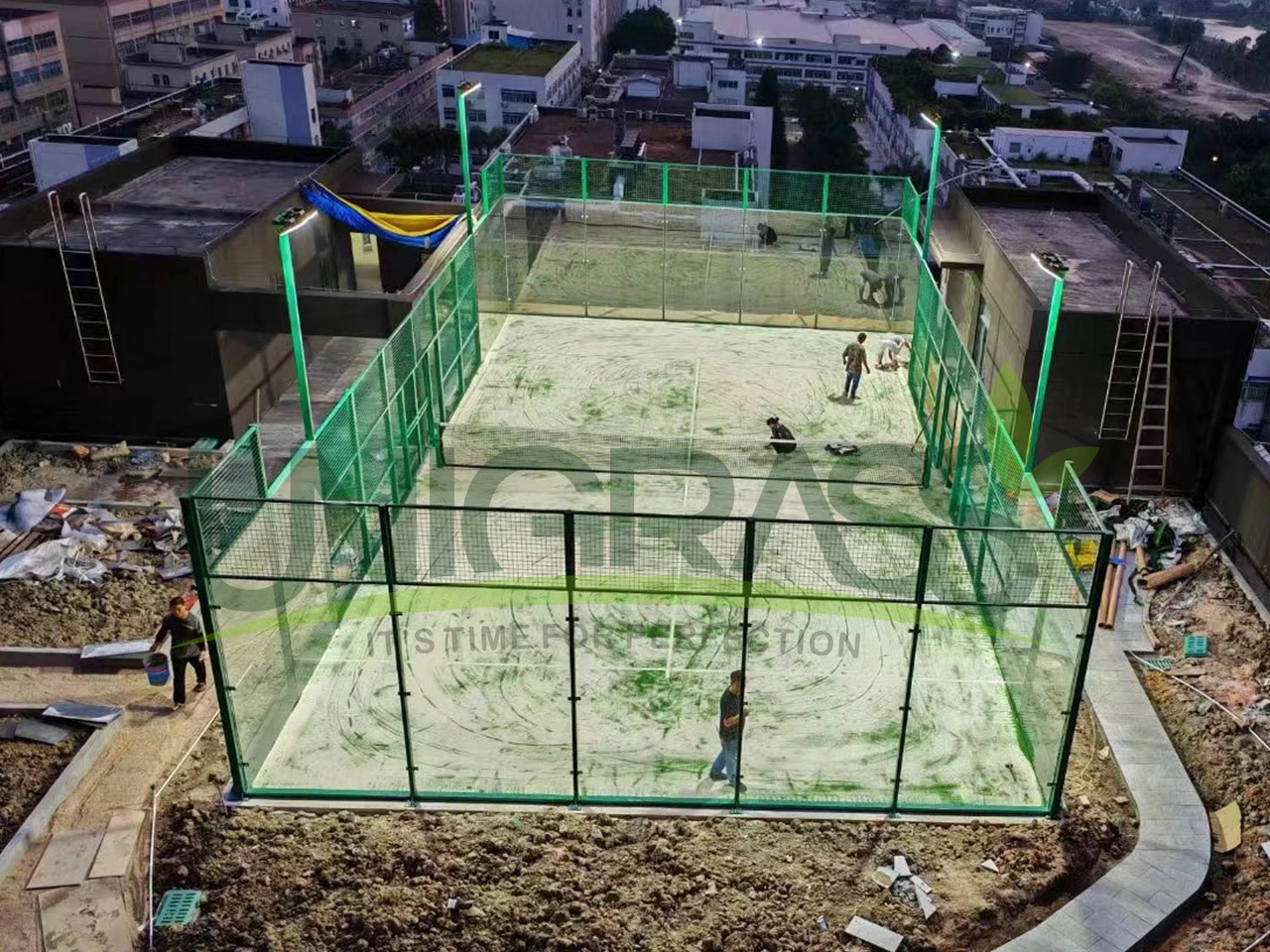

Projects we have done
Leave Us Your Info
UNIGRASS, a fully professional experience factory with more than 10 years of research and development experience, provides you with one-stop sports and leisure grass and a full set of facilities.
